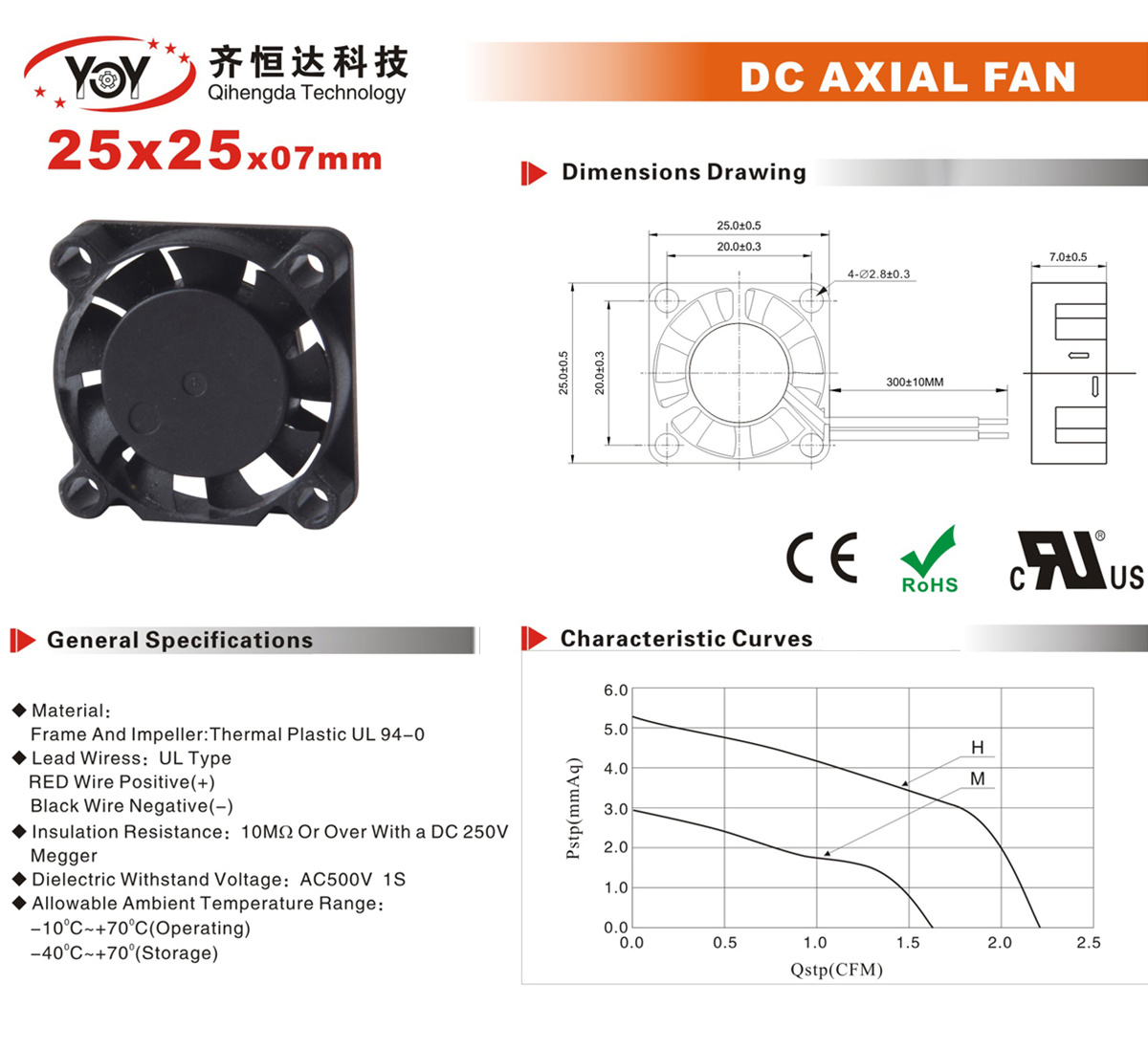

DC fan YD2507
◆Material:
Frame and Impeller: Thermoplastic UL 94-0
◆Lead: UL type
Red wire positive (+)
Black wire negative (-)
◆Insulation resistance: DC 250V 10MQ or more
Meg
◆Insulation withstand voltage: AC500V 1S
◆Allowable ambient temperature range:
-10°C~+70'C(working)
-40°C~ +70'(Storage)
Class：
Details
| Model | Bearing | Rated Voltage | Startup Volatge | Current Power | Power | Speed | Air Flow | Static Pressure | Noise | Weight | ||
| Part NO. | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA | G |
| YD2507S12H | Sleeve | 5 | 4.5 | 0.15 | 0.75 | 13000 | 0.055 | 2.18 | 5.22 | 0.20 | 24.2 | 6 |
| YD2507S12M | 45 | 0.10 | 0.50 | 10000 | 0.050 | 1.62 | 2.90 | 0.11 | 18.1 | |||
| YD2507S12H | Sleeve | 9.5 | 0.12 | 1.44 | 13000 | 0.055 | 2.18 | 5.22 | 0.20 | 24.2 | ||
| YD2507S12L | 12 | 9.5 | 0.08 | 0.96 | 10000 | 0.050 | 1.62 | 2.90 | 0.11 | 18.1 | ||
